Products

Versa Waxer

Features and Benefits:

• Available in 87″, 98″ and 110″ widths.
• Custom designed to fit your requirements and space limitations.
• Roll in – roll out, floor, preheater, and bridge mount units available.
• Wax application rates extremely stable – from 1.5lbs./MSF and up.
• Easy installation.

Duowax Applicator

Like the Versa Waxer, the Duowax Applicator is:

• Available in 87″, 98″ and 110″ widths.
• Wax application rates extremely stable – from 1.5lbs./MSF and up.
• Easy installation.

Plus:

• Multiple application rates available versus just one on the Versa Waxer, offers more production flexibility to our customers.
• Redundant systems in one machine, easier to maintain and service.
• Constant running design, allows for non-wax runs to continue through the machine without having to stop and re-thread.
• Dual wax float design, extra security from any potential wax overflow.
• Floor mount units available.

Product Specs Product Video

Pneumatic Belt Tracking System

Two roll system provides required belt wrap for responsive belt movement.
Continuous tracking provided by paddle located at the edge of the belt.
Belt movement/response can be adjusted to fit machine run characteristics.
Easy to maintain, adjust and operate.

Contact Bar® No Crush Rider Roll Replacement

Features and Benefits:

• No operator adjustments
• No flute deformation
• No flute crush
• Up to 10% increase in pin adhesion strength.
• Nylon matched components = no operational rust problems.
• Eliminates time consuming parallel problems associated with rider rolls.
• Professional and technical support.

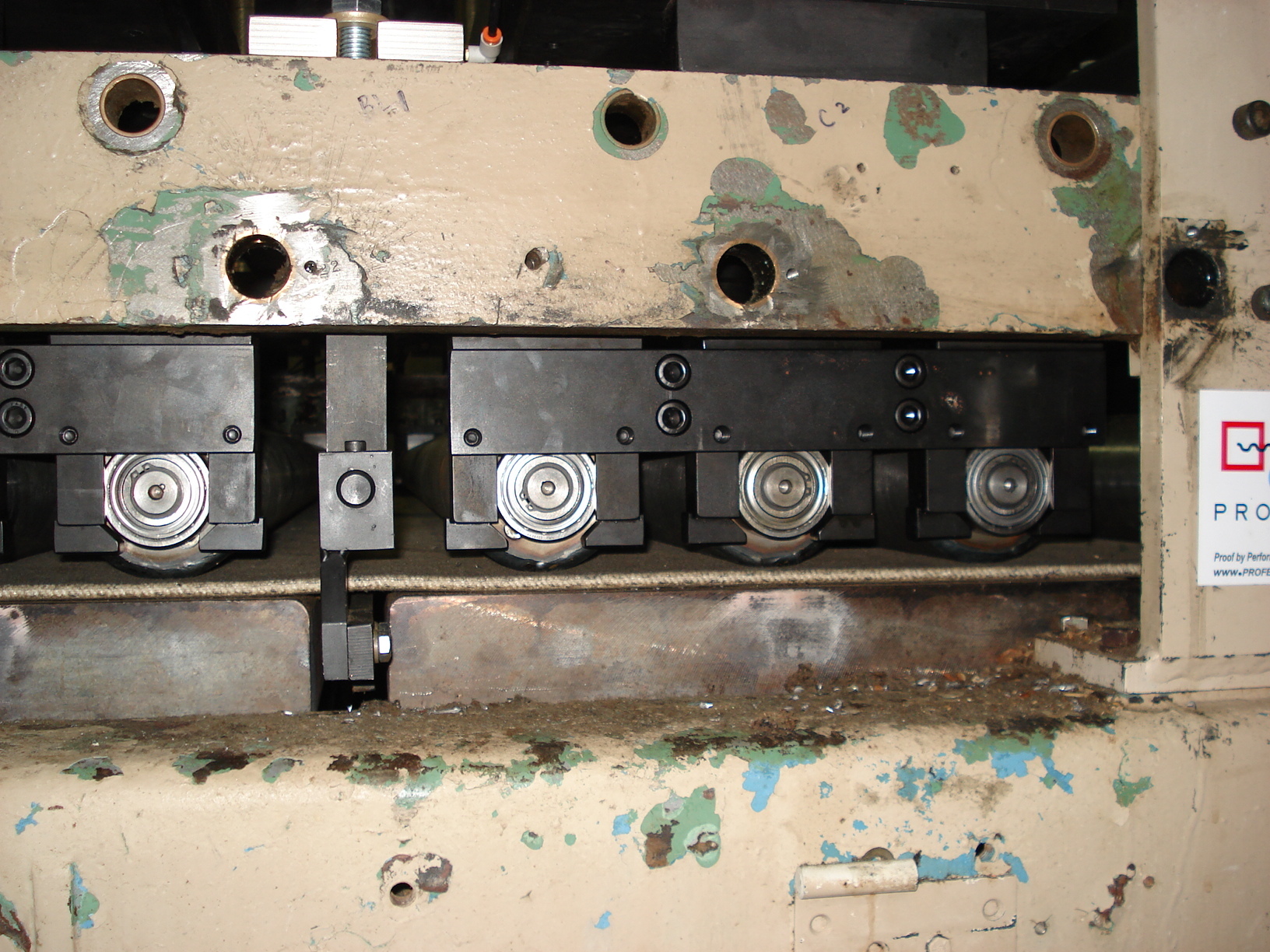

Roll Cassette Ballast System

Features and Benefits:

• Ideal for placement over the first couple steam chests.
• Provides a positive rolling pressure necessary for micro-flutes.
• Easy to install, designed to fit over one steam plate.
• Solid and glycol filled rolls to provide belt control and smooth ballast.
• Complete unit lifts out to perform any maintenance functions.
• Fits 18” or 24” steam plates. Comes in lifting & non-lifting units.

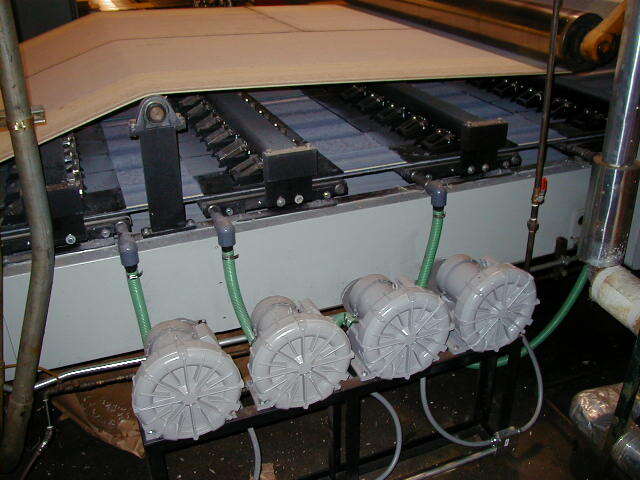

Hi-Trac II Traction Bar® & Air Glide Traction Section Conversions

Features and Benefits:

• Cost-effective upgrade for existing double facers.
• Permits the reduction of a traction section to 10ft (3m).
• Easy to install.
• Suitable for all existing double facers.
• Eliminate part (Traction Bars®) or all (Air Glide) of the roll and bearing maintenance.
• Air Glide air box systems reduces drag on the main drive unit.

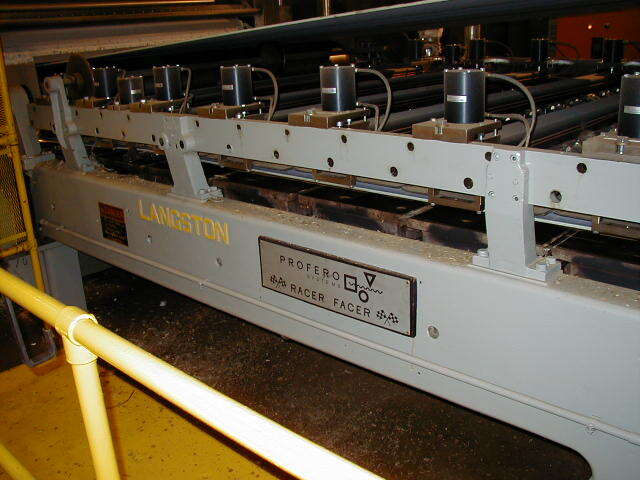

Thermo Bar® Heating Section Conversions

Why Thermo Bars®?

• Negates the effects of chest deflection.
• Increases the use of available heat.
• Equalizes and balances board moisture content and temperature.
• Improves board quality by totally eliminating crush and decreasing warp.
• Improves productivity at corrugator and converting operations due to improved board quality.
• Minimal operator adjustments required.

Product Specs Product Video

Self-Compensating Wrap Roll Replacements

Features and Benefits:

• Automatically compensates for loose edges and loosely wound rolls.
• No operator input required.
• Easy to install on virtually all preheaters / preconditioners.
• Ensures even heat distribution to paper on preheater drums.
• Contributes to warp reduction.
• Negates effect of backlash and non-parallel worn wrap arms.
• Does not steer the web off machine center.

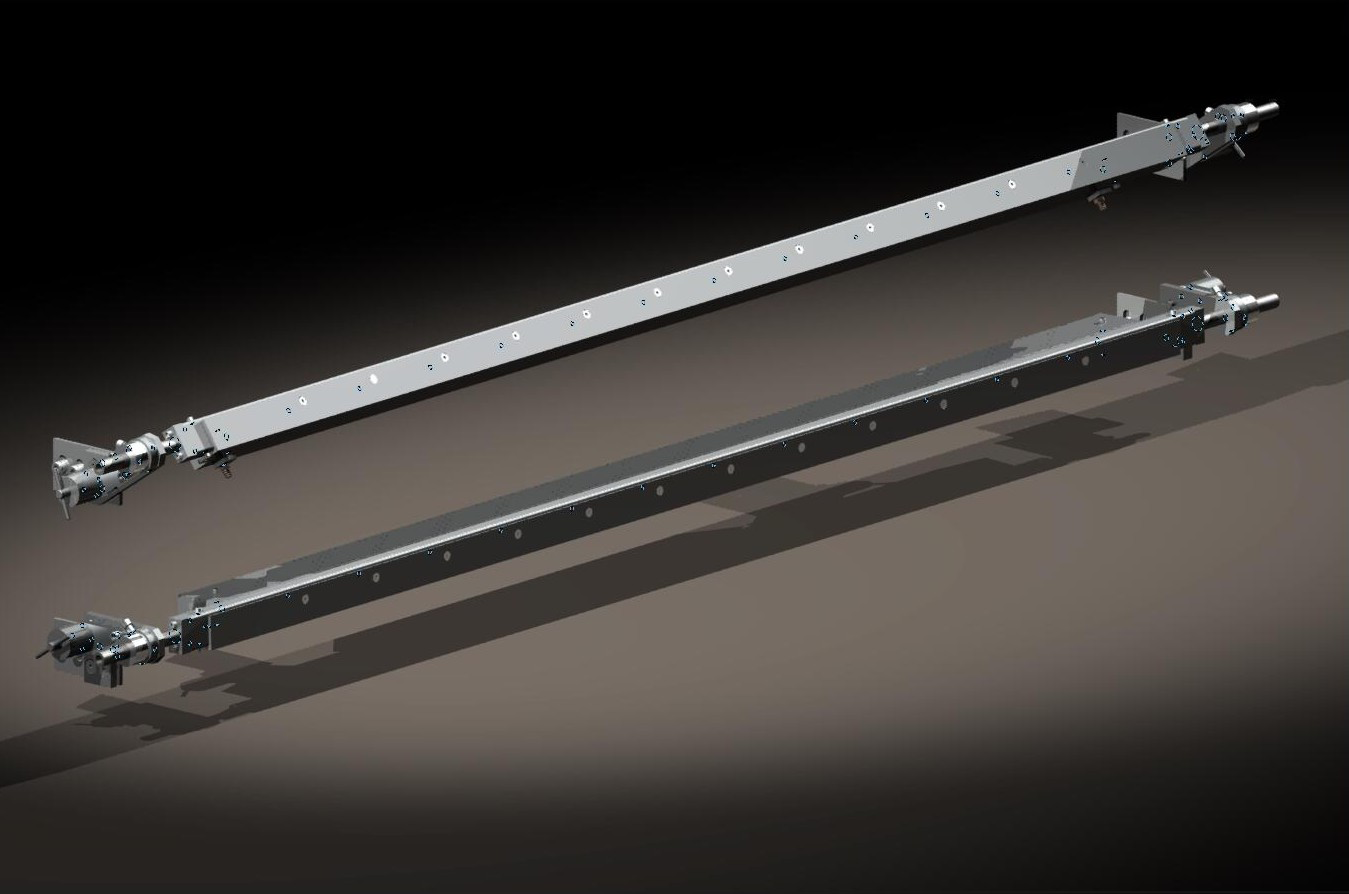

Jet Assist

Features and Benefits:

• Introduces steam to the double face glue liner prior to entry into double facer.
• Pregelatinizes adhesive allowing for higher run speeds, particular on heavy weight board combinations.
• Can be utilized for special applications, such as preprint with unstable varnish finish when double facer heat must be turned down.
• Ideal boost for short double facers.
• Best application is one Jet Assist for each single face web, ie, two units for doublewall, three units for triplewall.

Dual Arch Laminating System

Features and Benefits:

• The Profero Dual Arch Adhesive Application System allows two separate mediums to be laminated together prior to entry into the corrugating rolls.
• This system applies adhesive to the underside of the upper paper web in the direction of paper travel by means of an annular grooved roll. The adhesive is metered by a matching annular grooved roll, which can be adjusted during operation to suit the running conditions of the paper and type of adhesive used.
• The Dual Arch is a value added process providing our customers with options to provide higher performing box options to their customers.
